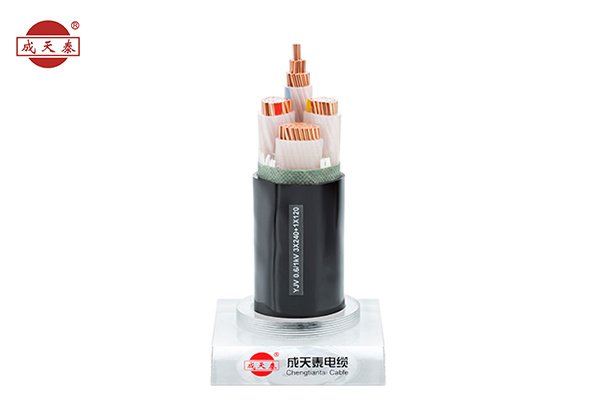

XLPE insulated PVC sheathed power cable
YJV
Model: YJV
Voltage class: 0.6/1kV
Cable structure: copper conductor/XLPE insulation/PVC outer sheath
Insulating material: XLPE crosslinked polyethylene
Number of cable cores: 1, 2, 3, 3+1, 4, 3+2, 4+1, 5
Implementation criteria:
National Standard: GB/T12706.2-2008 Rated Voltage 1KV (Um=1.2KV) to 35KV(Um=1.2KV) Extruded Insulated Power Cables and Accessories
International Standard: IEC60502-2:2005 Rated Voltage 1~30KV Extruded Insulated Power Cables and Accessories
Additional Standard: GB/T 19666-2005 General Rules for Flame Retardant and Refractory Cables
Scope of application: For transmission and distribution lines with 50 Hz AC rated voltage Uo/U of 0.6/1KV or less
0.6/1KV XLPE insulated steel armored PVC sheathed power cable (core 1,2,3,4,5,3+2,4+1)
YJV22 0.6/1kV
Model: YJV22
Voltage class: 0.6/1kV
Structure: copper conductor/XLPE insulation/steel tape armor/PVC sheath
Insulating material: XLPE crosslinked polyethylene
Number of cable cores: 1, 2, 3, 3+1, 4, 3+2, 4+1, 5
Implementation criteria:
National standard: GB/T 12706.1-2008
International Standard: IEC60502-1
Additional Standard: GB/T 19666-2005 General Rules for Flame Retardant and Refractory Cables
Scope of application: For transmission and distribution lines with rated voltage Uo/U of 0.6/1KV and below at 50 Hz.
It is suitable for buried laying and not suitable for laying in pipelines.
