Copper conductor PVC insulated PVC sheathed control cable
KVV
This product is suitable for wiring of control, signal, protection and measurement systems with rated voltage of 450/750V and below. It is laid indoors, in cable trenches, in pipelines and underground.
Implementation criteria:GB/T9330-88 / IEC60227
Brand:Chengtiantai®
Model:KVV
Conductor material:Oxygen-free copper (copper content: 99.9%)
Number of cores:multicore
Insulation material:PVC polyvinyl chloride
Rated voltage:450/750V
Conductor maximum temperature:105 ℃
Color:Red, Yellow, Green, Blue, Black, Yellow and Green

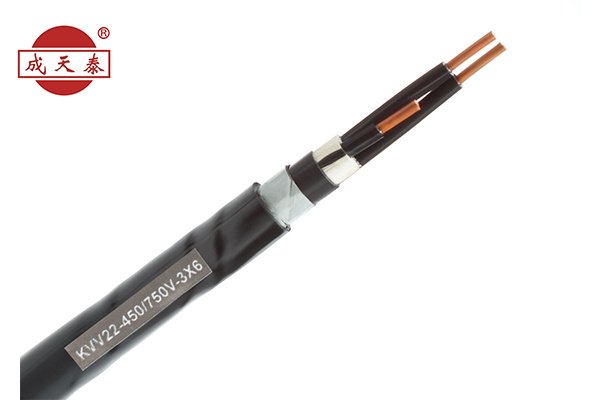

Copper conductor PVC insulated steel tape armored PVC sheathed control cable
KVV22
This product is applicable to fixed occasions such as indoor laying, cable trench, direct burying of pipelines and the like which can bear large mechanical external force under the wiring of control, signal, protection and measurement systems with rated voltage of 450/750V and below.
Implementation criteria:GB9330-88 / IEC227
Brand:Chengtiantai®
Model:KVV22
Conductor material:Oxygen-free copper (copper content: 99.9%)
Number of cores:multicore
Insulation material:PVC polyvinyl chloride
Rated voltage:450/750V
Conductor maximum temperature:105 ℃
Color:Red, Yellow, Green, Blue and Black

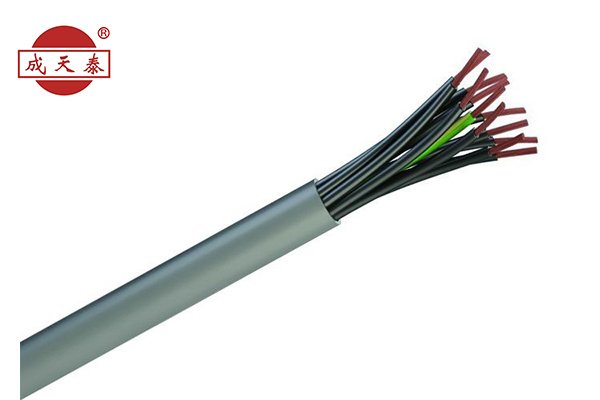

Copper conductor PVC insulated PVC sheathed control flexible cable
KVVR
It is suitable for connecting wires of control, monitoring circuits and protection circuits with rated voltage of 450/750V and below. It is laid in non-shielded occasions where indoor movement is required and flexibility is required.
Implementation criteria:GB9330 / IEC227
Brand:Chengtiantai®
Model:KVVR
Conductor material:Oxygen-free copper (copper content: 99.9%)
Number of cores:multicore
Insulation material:PVC polyvinyl chloride
Rated voltage:450/750V
Conductor maximum temperature:105 ℃
Color:Red, Yellow, Green, Blue, Black, Yellow and Green
